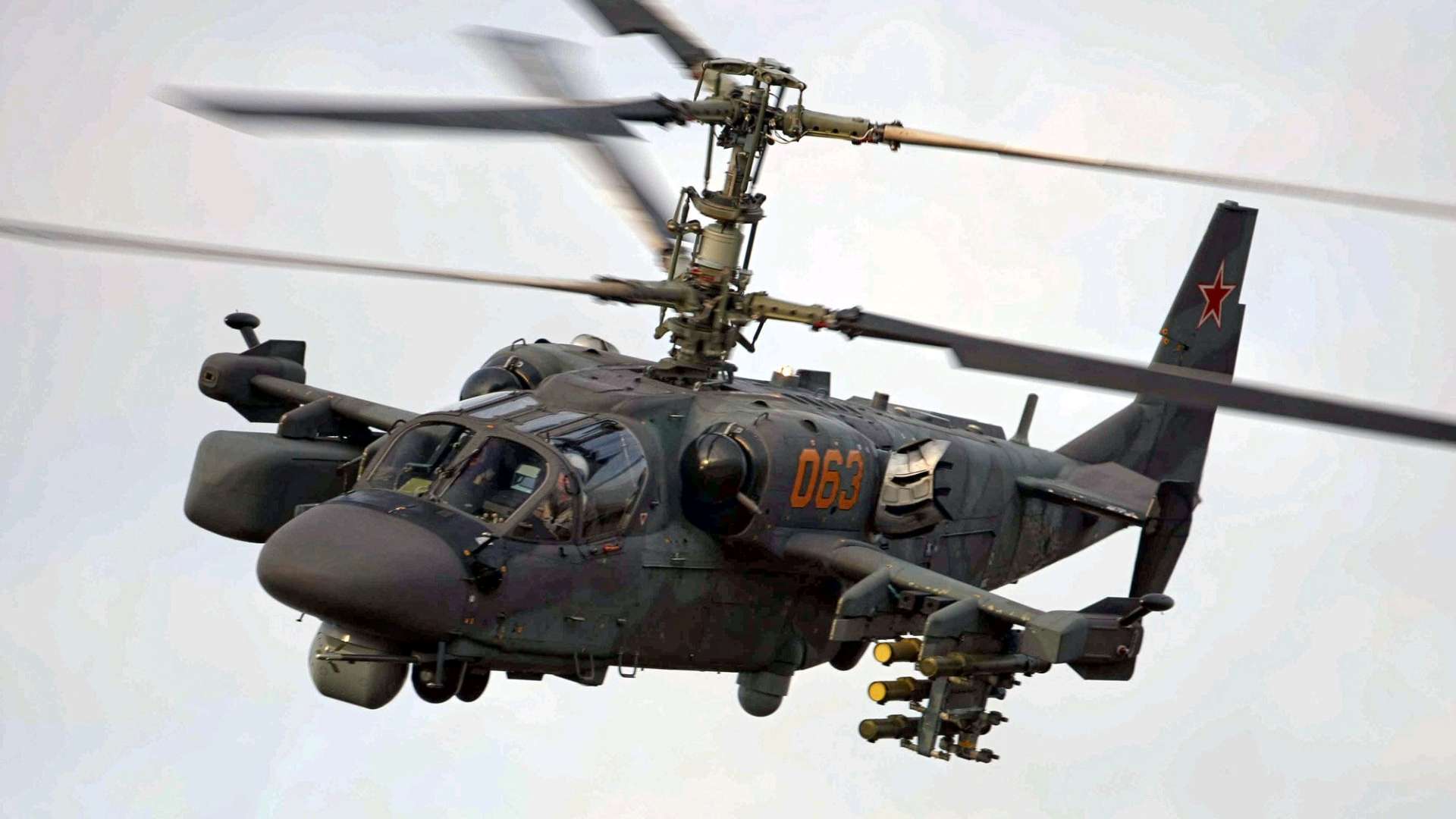

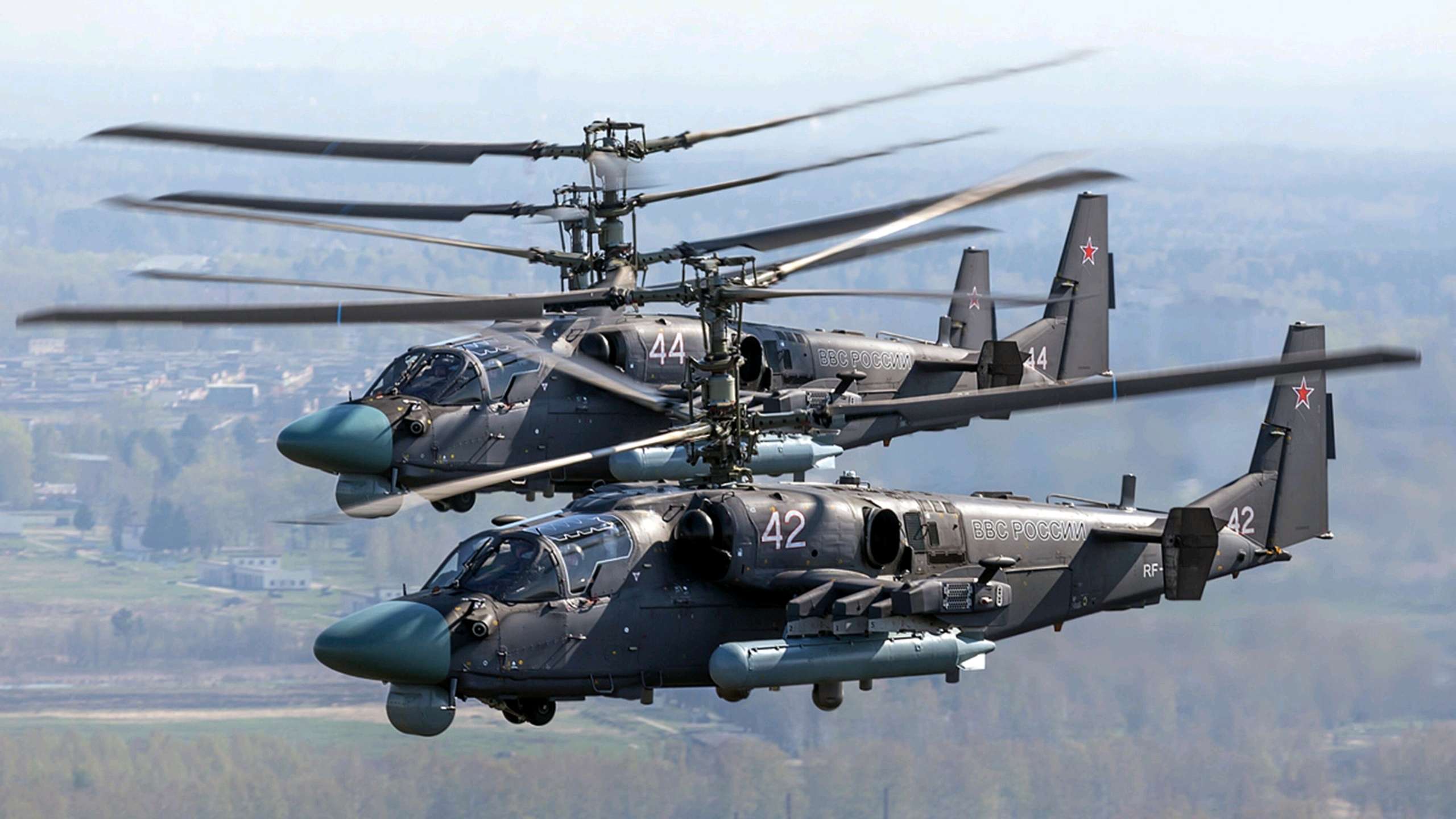

Ka-52 Alligator is an all-weather attack helicopter operated by the Russian Air Force. Developed by Kamov Design Bureau (part of Russian Helicopters), Ka-52 is a twin-seat variant of the Ka-50 attack helicopter. The Ka-52 helicopter can destroy enemy armoured and unarmoured ground targets, low-speed aerial targets and personnel at the frontline and in tactical depth. It is also deployed as a surveillance platform and aerial command post for a group of attack helicopters.

Ka-52 incorporates a slightly modified design of the Ka-50 helicopter. The helicopter features a wider nose and an extended fuselage due to its twin-seat cockpit. The commonality of the airframe, components and systems of the two variants is about 85%.

The helicopter has a length of 16m, height of 4.9m and main rotor diameter of 14.5m. The maximum take-off weight of the Ka-52 is 10,800kg.

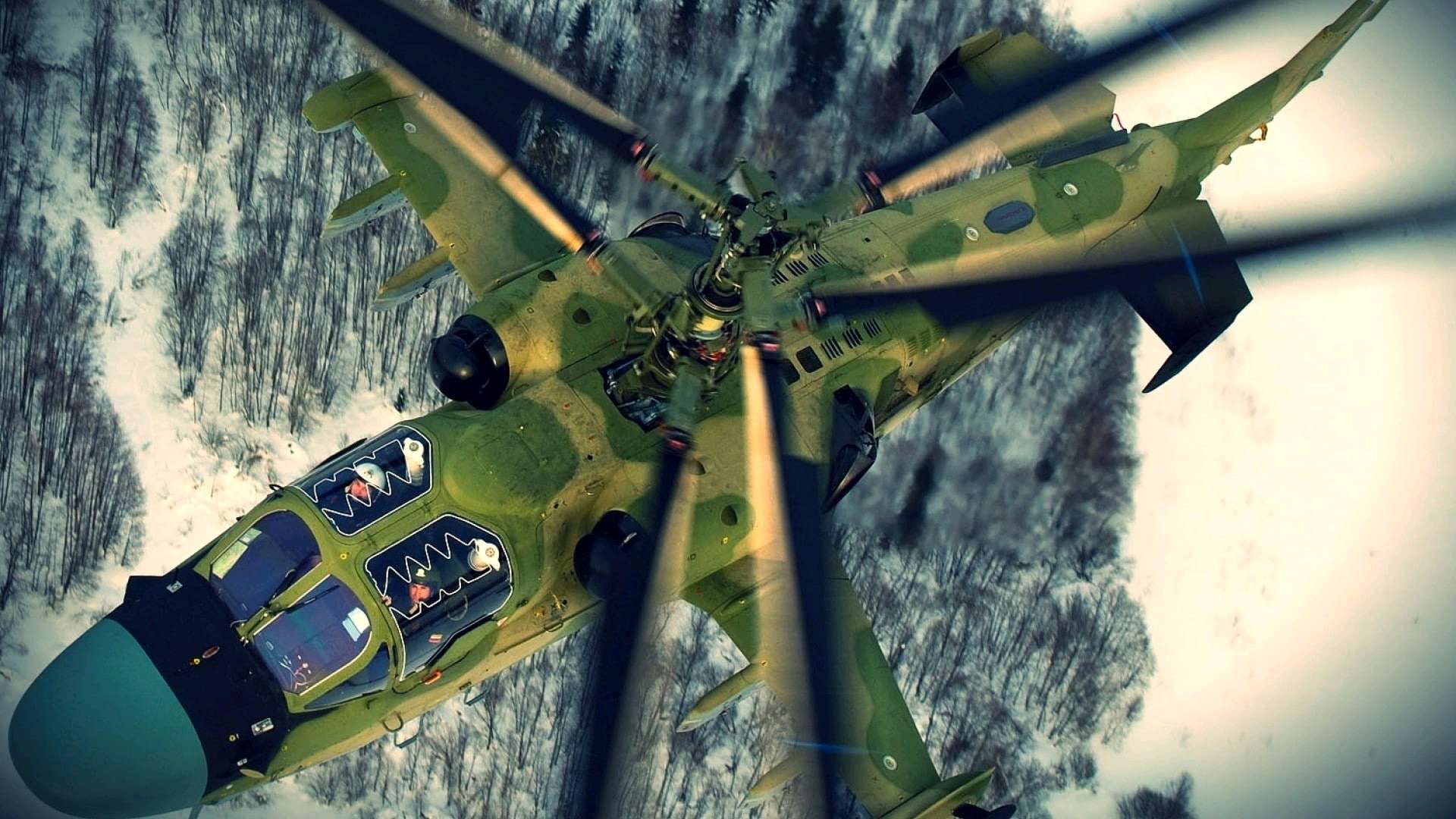

The twin-seat cockpit accommodates two crew members in side-by-side arrangement. Both the crew members are seated on identical K-37-800M ejection seats. The modern glass cockpit is equipped with a head-up-display (HUD), four SMD 66 multifunction displays, helmet-mounted sight display, image intensifiers and a GPS receiver. The helicopter also integrates a FAZOTRON cabin desk radio-locator and navigation and attack system for helicopters (NASH).

The Alligator is powered by two Klimov VK-2500 turboshaft engines driving two coaxial contra-rotating main rotors. Each engine produces a maximum take-off power of 2,400hp. The engines are equipped with a new full authority digital control system (FADEC).

The helicopter can fly at a maximum altitude of 5,500m. The maximum and cruise speeds of the helicopter are 300km/h and 260km/h respectively. The helicopter can climb at a rate of 12m/s. The Ka-52 has a practical flight range of 460km, while its ferry flight range is 1,110km.

The Ka-52 helicopter is fitted with a mast-mounted radome housing a Phazotron FH-01 Millimeter Wave Radar (MMW) radar with two antennas for aerial and ground targets. The countermeasures are supported by active IR and electronic jammers, radar warning receiver (RWR), laser detection system, IR missile approach warning sensor and UV-26 flare / chaff dispensers in wing-tip fairings.

The starboard side of the fuselage is fitted with a NPPU-80 movable gun mount installed with 2A42 30mm automatic gun. The six wing-mounted external hardpoints can be attached with different combinations of weapons.

The hardpoints can carry VIKHR anti-tank guided missiles (ATGM), ATAKA missiles with laser guidance system and B8V-20 rocket launchers for 80mm unguided S-8 rockets. VIKHR anti-tank missile has a range of eight to ten kilometres. The Ka-52s can also be armed with IGLA-V anti-aircraft guided missiles. Air to air combat is not just an option for the Ka-52: the Alligator is in fact equipped with Vympel R-73 air to air missiles (range: 19 miles).

Overall, however, the Ka-52 is still generally thought to lag behind the AH-64E Apache Guardian in terms of avionics.

*******
